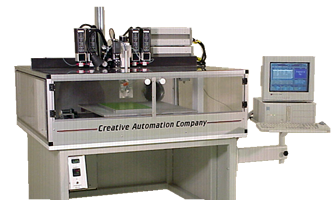

The Champion
8300 is a servo driven, high throughput automatic dispensing system designed
for inline, conveyorized processes.
The Champion 8300 provides precise, repeatable placement of your dispense materials. Antistatic belts and height compliant clamps assure accurate and secure positioning of parts.
Standard Features
• 3-axis brushless servo motor drive
• Precision anti-backlash ball screw drive on all axis
• High speed conveyor
• Powerful, easy-to-use Windows-style software
• LCD display
• Rugged construction and quiet operation
• Small footprint
• SMEMA compatibility and CE certification
• Full 1-year warranty
Optional Features
• Vision system with camera image on the LCD display
• Auto vision alignment and dot verification
• Programmable lighting
• Auto height mapping
• Independently controlled multiple dispense heads
• Contact or non-contact (Laser) height sensors
• Leveling support plates, mechanical and vacuum
• Substrate, needle, and material heaters
Creative
Automation Company sets the Medical and Electronic dispensing industry
standard for accurate and reliable dispensing processes. Customers include
Fortune 500 as well as smaller regional and local companies. The common
thread is their desire to improve throughput and reduce waste.
Depicted
above is a custom XYZ Motion Control System with Environmental Chamber
(temperature and humidity controlled). Capable of descreet dispenses down
to 2 nanoliters using IVEK Positive Displacement Pumps.
An easy-to-use interface simplifies programing. Integrated
vision provides programming assistance and placement verification. Programmable
lighting and Height Mapping make dispensing possible on virtually any
surface.
